9.3 Case Study Analysis: Implementing Energy-Efficient Designs

Lesson 9.3: Case Study Analysis: Implementing Energy-Efficient Designs

In an era where energy efficiency is crucial to mitigating climate change and reducing operational costs, understanding how to design buildings that minimize energy consumption is more important than ever. Lesson 9.3, titled “Case Study Analysis: Implementing Energy-Efficient Designs,” delves into the strategies and innovations that make energy-efficient buildings possible. This lesson will explore real-world examples of projects that have successfully integrated energy-saving technologies, demonstrating the tangible benefits of energy-efficient design.

What You Will Learn:

• Explore Cutting-Edge Energy-Efficient Projects: We will review a selection of case studies that highlight diverse approaches to reducing energy consumption in buildings. These examples will range from commercial skyscrapers to residential complexes, showcasing a variety of solutions tailored to different contexts and needs.
• Examine Key Design Strategies: The lesson will break down the specific technologies and design elements used to enhance energy efficiency. From high-performance glazing and advanced HVAC systems to passive solar design and renewable energy integration, you’ll gain insights into the best practices that set these projects apart.
• Understand the Impact: We will assess the outcomes of these energy-efficient designs, examining how they contribute to lower energy bills, reduced carbon footprints, and enhanced occupant comfort. By understanding these impacts, you’ll see how sustainable design can deliver both environmental and economic benefits.

Why It Matters:

Energy-efficient designs are no longer just a trend—they are a necessity. As energy costs rise and regulations become stricter, implementing energy-saving measures is crucial for the future of construction. This lesson will equip you with the knowledge and inspiration needed to apply these principles to your own projects, helping you to create buildings that are not only environmentally responsible but also economically viable.

Get ready to dive into the world of energy efficiency and discover how thoughtful design can transform the way buildings consume and conserve energy.

Objective:

By the end of this lesson, learners will have a comprehensive understanding of how energy-efficient designs are implemented in real-world construction projects. Through the analysis of various case studies, they will:

• Analyze Energy-Efficient Design Strategies: Learners will examine the specific strategies used in each case study to achieve energy efficiency. This includes exploring the use of technologies such as high-performance insulation, smart lighting systems, energy-efficient HVAC, passive solar design, and renewable energy integration.
• Evaluate the Outcomes: Learners will assess the results of implementing energy-efficient designs, such as reductions in energy consumption, operational cost savings, improved environmental performance, and enhanced occupant comfort. They will learn how these outcomes contribute to the overall sustainability and success of the project.
• Identify Best Practices: By identifying common themes and successful approaches across the case studies, learners will uncover best practices in energy-efficient building design. These insights will highlight key elements that can be applied to future projects to maximize energy savings and sustainability.
• Understand the Challenges: The lesson will also cover the challenges associated with implementing energy-efficient designs, such as upfront costs, technical complexities, and integration of new technologies. Learners will explore how these challenges were addressed in the case studies, providing valuable lessons for overcoming similar obstacles in their own projects.

This lesson will equip learners with practical knowledge of energy-efficient design strategies and their real-world applications. By understanding the benefits and challenges of these approaches, learners will be better prepared to implement effective energy-saving measures in their future construction projects, ultimately contributing to a more sustainable built environment.

---

---

1. Introduction to Energy-Efficient Design Case Studies

Energy-efficient design has become a critical focus in modern construction, driven by the need to reduce energy consumption, lower operational costs, and minimize environmental impact. As buildings account for a significant portion of global energy use and carbon emissions, integrating energy-efficient strategies into their design is essential for promoting sustainability.

This section introduces a series of case studies that showcase successful implementations of energy-efficient design in various types of buildings. These real-world examples highlight how innovative design approaches and advanced technologies can be used to enhance energy performance and create more sustainable built environments.

Through these case studies, learners will explore:

• The Importance of Energy Efficiency: Understanding the role of energy-efficient design in reducing a building’s carbon footprint and improving overall environmental performance.
• Diverse Strategies in Action: Analyzing different strategies used across various projects, from passive design techniques to cutting-edge smart technologies and renewable energy integration.
• Real-World Success Stories: Examining how buildings around the world have achieved significant energy savings and the impact these achievements have on occupants, owners, and the wider community.

These case studies serve not only as educational tools but also as inspiration for incorporating energy-efficient practices into future construction projects. By studying these successful examples, learners will gain insights into the practical application of energy-efficient design and be better equipped to contribute to sustainable building development.

Key Points:

a. Purpose of Case Studies

Case studies are essential tools for illustrating how energy-efficient design can be practically implemented in real-world construction projects. By examining these examples, learners can see how diverse strategies—such as passive solar design, advanced insulation, high-performance glazing, and renewable energy integration—are applied to achieve significant energy savings. These studies highlight the tangible benefits of energy-efficient design, such as reduced energy consumption, lower operational costs, enhanced indoor comfort, and minimized environmental impact. They also demonstrate how various stakeholders, from architects and engineers to building owners and occupants, can contribute to and benefit from energy-efficient building practices.

---

b. Structure of Analysis

Each case study will be analyzed through a structured framework that covers key aspects of energy-efficient design:

• • Project Overview: A summary of the project, including its location, type, and key features that set it apart as an energy-efficient building.
  • Energy-Efficient Design Strategies: A detailed exploration of the specific design strategies and technologies employed to enhance energy performance. This section will cover elements such as building orientation, insulation techniques, HVAC systems, smart controls, and the use of renewable energy sources.
  • Outcomes: An evaluation of the results achieved, focusing on energy savings, cost reductions, improvements in building performance, and any other environmental or operational benefits.
  • Challenges: An examination of the obstacles faced during the implementation of energy-efficient design strategies and the solutions developed to overcome these issues.

By analyzing these components, learners will gain a comprehensive understanding of the factors that contribute to the success of energy-efficient designs. This approach not only highlights the effectiveness of various strategies but also helps identify best practices and potential areas for improvement in future projects.

---

Reflection Element:

Reflect on what can be learned from analyzing successful energy-efficient design projects, and how these lessons can be applied to other construction projects.

---

---

2. Case Study 1: The Edge, Amsterdam

The Edge, located in Amsterdam, is widely recognized as one of the most sustainable and energy-efficient office buildings in the world. Developed by OVG Real Estate and completed in 2015, The Edge stands as a benchmark for integrating smart technologies with innovative design to optimize energy use and enhance occupant comfort.

This case study delves into how The Edge has redefined energy efficiency in commercial office spaces through a combination of cutting-edge design elements, intelligent building systems, and renewable energy sources. From its adaptive lighting and climate control to the extensive use of solar panels, The Edge demonstrates how modern buildings can achieve remarkable energy performance.

Key aspects covered in this case study include:

• Overview of the Building: Understanding the building’s purpose, design objectives, and unique features that contribute to its status as a leader in sustainable architecture.
• Energy-Efficient Design Strategies: Exploring the specific technologies and design principles implemented to minimize energy consumption and maximize efficiency.
• Outcomes and Performance: Evaluating the results of these strategies, including energy savings, operational efficiencies, and the building’s impact on occupants and the environment.
• Challenges and Lessons Learned: Examining the obstacles encountered during the project and how they were addressed to achieve the building’s ambitious energy efficiency goals.

By studying The Edge, learners will gain insights into the potential of energy-efficient design in transforming the built environment and setting new standards for sustainable construction.

Project Overview:

a. Description

• • Location: Amsterdam, Netherlands
  • Type: Office Building
  • Completion: 2015
  • Developer: OVG Real Estate
  • Architect: PLP Architecture and Arup
  • Purpose: To set a new benchmark in sustainable office design by integrating cutting-edge technologies and innovative design principles.

Key Features:

1. Innovative Design:

• • Energy Efficiency: The Edge is renowned for its groundbreaking approach to energy efficiency. The building integrates advanced technologies to optimize energy use, making it one of the most sustainable office buildings globally.
  • Smart Technologies: The design incorporates a range of smart technologies, including adaptive lighting systems and intelligent climate control, which work together to enhance energy performance and occupant comfort.
  • Modern Aesthetics: The Edge features a sleek, modern architectural design that emphasizes both functionality and visual appeal. Its glass façade and distinctive shape contribute to its status as a symbol of cutting-edge sustainable architecture.

2. Sustainability Goal:

• • Exceeding Standards: The Edge was developed with the aim of surpassing traditional energy performance benchmarks. It was designed not only to meet but to exceed standard sustainability criteria, showcasing the potential for high-performance, environmentally responsible office buildings.
  • Model for Future Developments: By pushing the boundaries of what is achievable in terms of energy efficiency and sustainable design, The Edge serves as a model for future commercial building projects. Its success demonstrates how integrating innovative design elements and smart technologies can achieve exceptional results in sustainability.

---

b. Energy-Efficient Design Strategies

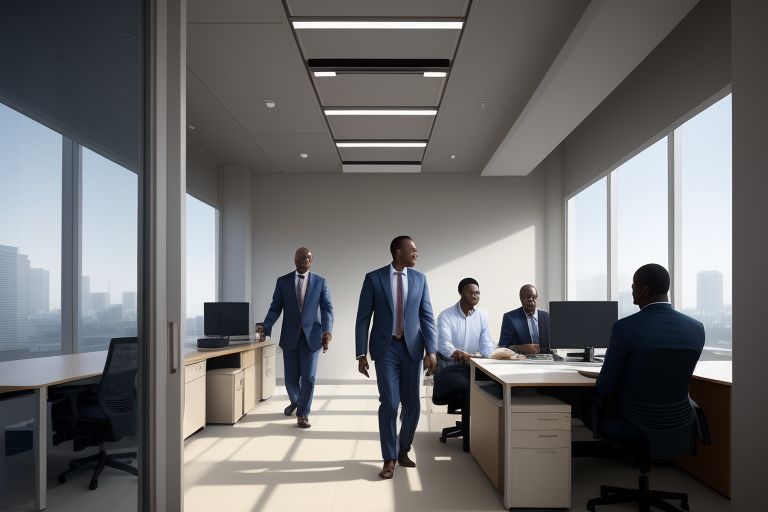

1. Smart Lighting:

Technology: The Edge utilizes advanced LED lighting systems that are equipped with both occupancy sensors and daylight sensors.

• • Occupancy Sensors: These sensors detect the presence of people in different areas of the building and adjust lighting levels accordingly, ensuring that lights are only on when needed.
  • Daylight Sensors: These sensors measure the amount of natural light entering the building and automatically adjust artificial lighting to complement daylight, optimizing illumination and reducing energy use.

Function: The smart lighting system ensures that lighting is dynamically adjusted based on occupancy levels and natural light availability. This approach not only maximizes energy efficiency by minimizing unnecessary lighting but also enhances the comfort of occupants by providing appropriate lighting levels throughout the day.

2. Building Envelope:

Insulation: The Edge employs high-performance insulation materials that significantly reduce thermal bridging and enhance energy retention within the building.

• • Materials: The insulation used is designed to provide superior thermal resistance, preventing heat loss in winter and reducing heat gain in summer.
  • Effect: This high-quality insulation contributes to a stable indoor temperature, reducing the demand on heating and cooling systems and improving overall energy efficiency.

Glazing: The building features triple-glazed windows with low-emissivity coatings.

• • Triple-Glazed Windows: These windows consist of three layers of glass with insulating spaces in between, offering excellent thermal performance and reducing heat transfer.
  • Low-Emissivity Coatings: These coatings minimize heat loss through the glass by reflecting infrared energy back into the building, further improving thermal efficiency and comfort.

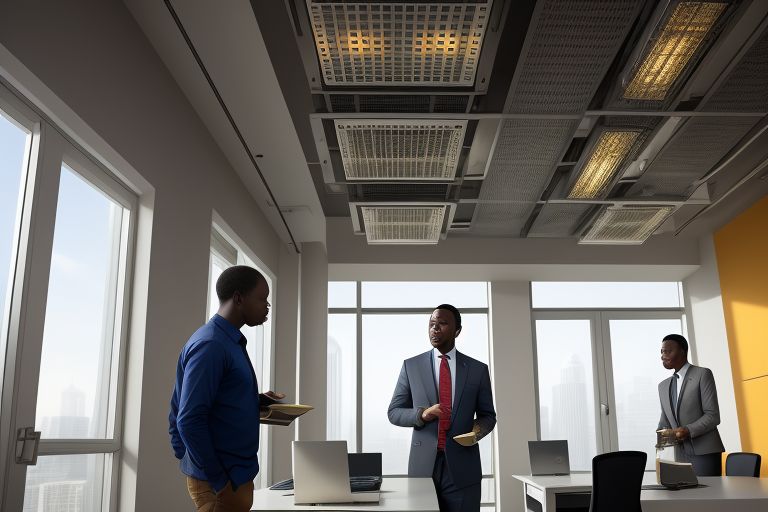

3. HVAC Systems:

Heating and Cooling: The Edge utilizes an energy-efficient HVAC system that incorporates chilled beam technology.

• • Chilled Beam Technology: This system uses convection and radiation to cool or heat spaces, which is highly efficient compared to traditional HVAC systems. It reduces the need for mechanical ventilation and allows for precise temperature control.
  • Efficiency: The chilled beams are designed to provide effective temperature regulation with minimal energy consumption.

Ventilation: The HVAC system is equipped with advanced ventilation features to ensure optimal air quality while minimizing energy use.

• • Ventilation Design: The system includes energy recovery ventilators that capture and reuse energy from outgoing air to precondition incoming fresh air, reducing the overall energy needed for ventilation.

4. Solar Energy:

Solar Panels: The Edge’s roof and façade are covered with a comprehensive array of photovoltaic panels.

• • Photovoltaic Panels: These panels convert sunlight directly into electricity, contributing to the building’s renewable energy generation.
  • Placement: By installing panels on both the roof and façade, The Edge maximizes its exposure to sunlight and energy capture.

Energy Generation: The photovoltaic panels generate a significant portion of the building’s energy needs, contributing to its net-positive energy status.

• • Net-Positive Energy: The building produces more energy than it consumes over a year, thanks to its extensive solar panel installation and efficient energy use strategies.

---

c. Outcomes

1. Performance:

Energy Consumption:

• • Reduction in Energy Use: The Edge has set a new standard for energy efficiency by significantly reducing energy consumption compared to conventional office buildings. Through its innovative design and energy-efficient technologies, the building has achieved a remarkable reduction in energy use, demonstrating a commitment to sustainability.
  • Net-Positive Energy Status: Notably, The Edge produces more energy on-site than it consumes over the course of a year. This net-positive energy status is largely attributed to its extensive array of photovoltaic panels and highly efficient energy systems, which collectively generate surplus energy that contributes to its sustainability goals.

Energy Efficiency Rating:

• • LEED Certification: The Edge has achieved a high rating in LEED (Leadership in Energy and Environmental Design), one of the most recognized green building certification programs. This rating reflects the building’s exceptional energy performance, sustainable design, and innovative use of technologies.
  • BREEAM Certification: Additionally, The Edge has received top ratings from BREEAM (Building Research Establishment Environmental Assessment Method), further validating its status as a leading example of energy-efficient and sustainable design.

2. Occupant Experience:

Comfort and Productivity:

• • Intelligent Systems: The building’s intelligent lighting and climate control systems are designed to enhance occupant comfort by maintaining optimal environmental conditions throughout the day. These systems adjust automatically based on real-time data, ensuring a consistent and pleasant indoor climate.
  • Enhanced Productivity: The Edge’s focus on creating a comfortable and well-regulated working environment has had a positive impact on occupant productivity. By providing a high-quality indoor environment, the building supports employees’ well-being and efficiency, making it a desirable place to work.
  • Well-Being: The integration of natural light, effective temperature control, and advanced ventilation contributes to a healthier workplace, promoting overall well-being and satisfaction among occupants.

---

d. Challenges

1. Complex Integration:

Coordination:

• • Challenge: Integrating multiple advanced technologies and systems in The Edge posed significant coordination challenges. The building incorporates a wide range of smart technologies, including adaptive lighting, sophisticated HVAC systems, and energy management systems, all of which needed to work seamlessly together.
  • Solution: To address these challenges, careful planning and coordination among various stakeholders—including architects, engineers, and technology providers—were essential. Rigorous testing and integration procedures were implemented to ensure that all systems functioned harmoniously and delivered the intended performance.

2. Initial Costs:

Investment:

• • Challenge: The implementation of cutting-edge technologies and sustainable systems required a substantial upfront investment. The advanced features, such as high-performance insulation, triple-glazed windows, and extensive photovoltaic panels, involved significant costs that needed to be justified.
  • Solution: The high initial costs were mitigated through detailed financial analysis and long-term cost-benefit assessments. The project team demonstrated how the investment in energy efficiency would lead to substantial savings in operational costs over time. Additionally, financial incentives, grants, and sustainable building certifications helped offset some of the initial expenses.

---

e. Lessons Learned:

1. System Integration:

Thorough Planning and Coordination: The successful integration of smart technologies in The Edge underscores the importance of meticulous planning and coordination. Ensuring compatibility and efficiency among various systems—such as lighting, HVAC, and energy management—requires comprehensive design strategies and collaboration among all stakeholders. Effective communication and integration testing are crucial to achieving a seamless operation and maximizing the benefits of advanced technologies.

2. Long-Term Savings:

Investment Payoff: Although the initial costs of implementing energy-efficient design and technologies were high, the long-term savings have proven substantial. The Edge demonstrates that investing in sustainable systems can lead to significant reductions in operational expenses over time. Energy savings, reduced maintenance costs, and increased building longevity contribute to a favorable return on investment. This highlights the importance of considering long-term financial benefits when evaluating the costs of advanced sustainable technologies.

3. Benchmarking:

Setting New Standards: The Edge serves as a benchmark for modern buildings aiming to achieve exceptional energy performance. Its success in integrating innovative design elements and advanced technologies sets a high standard for future sustainable construction projects. By demonstrating what is achievable in terms of energy efficiency and sustainability, The Edge provides valuable insights and inspiration for architects, developers, and builders looking to push the boundaries of sustainable design.

---

Reflection Element:

Reflect on how the smart lighting and HVAC systems at The Edge contribute to its energy efficiency and overall performance.

---

© Copyright Fred Romero and licensed for Attribution 2.0 Generic under this Creative Commons Licence.

---

3. Case Study 2: Bosco Verticale, Milan

Bosco Verticale, or the Vertical Forest, located in Milan, Italy, represents a revolutionary approach to urban architecture and green design. Completed in 2014, this pair of residential towers has garnered international acclaim for its innovative integration of nature and urban living. Designed by the architectural firm Stefano Boeri Architetti, Bosco Verticale is not only a striking addition to Milan’s skyline but also a pioneering example of how vertical green spaces can contribute to sustainable urban environments.

The Vertical Forest stands out for its bold vision of incorporating extensive vegetation into high-rise buildings, aiming to address both environmental and social challenges. The design incorporates over 9,000 trees, 14,000 shrubs, and 40,000 plants, creating a lush, vertical landscape that offers numerous benefits. This case study explores how Bosco Verticale has redefined urban living through its integration of green architecture and energy-efficient design.

Key aspects covered in this case study include:

• Overview of the Building: A detailed look at the purpose, design objectives, and unique features of Bosco Verticale, highlighting its role in enhancing urban biodiversity and combating the heat island effect.
• Energy-Efficient Design Strategies: An examination of the specific technologies and design principles implemented to optimize energy use, including the building’s green façades and passive design features.
• Outcomes and Performance: An evaluation of the building’s performance in terms of energy efficiency, environmental impact, and the enhancement of occupant well-being.
• Challenges and Lessons Learned: Insights into the challenges faced during the project’s development and the solutions that were employed to achieve its ambitious goals.

Project Overview:

a. Description

• • Location: Milan, Italy
  • Type: Residential Towers
  • Completion: 2014
  • Architect: Stefano Boeri Architetti
  • Purpose: Bosco Verticale, or the Vertical Forest, is a pioneering residential project designed to integrate nature into urban living. The towers address the challenges of urbanization by combining extensive green architecture with energy-efficient design principles. This innovative approach aims to improve the quality of urban life and environmental sustainability.

Key Features:

1. Innovative Green Architecture:

• • Vertical Gardens: Bosco Verticale is celebrated for its vertical gardens that envelop the façades of both residential towers. These lush green walls are home to over 9,000 trees, 14,000 shrubs, and 40,000 plants, creating a unique and vibrant living environment.
  • Urban Biodiversity: The vertical gardens contribute to urban biodiversity by providing habitats for various species and enhancing the ecological balance within the city. This greenery also plays a role in reducing the urban heat island effect and improving air quality.

2. Energy Efficiency:

• • Sustainable Design: The project not only emphasizes aesthetic and ecological value but also focuses on energy efficiency. The integration of green architecture helps to reduce the environmental impact of the buildings by moderating indoor temperatures and lowering energy consumption for heating and cooling.
  • Enhanced Living Conditions: By incorporating natural elements and energy-efficient design, Bosco Verticale improves living conditions for its residents. The design fosters a healthier and more comfortable indoor environment, making it a model for future sustainable urban development.

---

b. Energy-Efficient Design Strategies

1. Green Façades

Vertical Gardens:

The towers of Bosco Verticale are adorned with extensive vertical gardens that cover the building façades. These vertical gardens act as a living layer of insulation, integrating nature directly into the architecture.

Function: The green façades serve a dual purpose:

• • Natural Insulation: The layers of vegetation provide natural insulation by reducing the amount of heat that enters or escapes from the building. This shading effect helps to moderate indoor temperatures, reducing the need for artificial heating and cooling.
  • Temperature Regulation: By shading the building and acting as a buffer against temperature extremes, the vertical gardens help to maintain a stable indoor climate, contributing to overall energy efficiency.

Benefits:

• • Energy Consumption: The presence of extensive greenery helps to lower the building’s energy consumption by reducing heating and cooling demands. The natural insulation provided by the plants contributes to energy savings by minimizing the reliance on mechanical temperature control systems.
  • Thermal Comfort: The vertical gardens enhance thermal comfort for occupants by maintaining more consistent indoor temperatures. This leads to a more pleasant living environment and contributes to the overall sustainability of the building.

2. High-Performance Glazing

Low-Emissivity Windows:

Bosco Verticale features low-emissivity (low-e) glazing on its windows. These windows are designed with a special coating that reduces heat transfer.

Function:

• • Minimized Heat Transfer: Low-e glazing helps to minimize heat transfer through the windows by reflecting infrared energy. This reduces the amount of heat lost during colder months and the amount of heat gained during warmer months.
  • Energy Efficiency: By limiting heat transfer, the low-e glazing supports the building’s energy efficiency goals, reducing the demand on heating and cooling systems.

Thermal Comfort:

• • Enhanced Thermal Comfort: The use of high-performance glazing significantly improves thermal comfort within the building. By reducing heat loss and gain, the windows help to maintain a more stable indoor temperature, which enhances overall occupant comfort and contributes to the building’s energy efficiency.

3. Natural Ventilation

Design Elements:

Bosco Verticale incorporates various design elements to facilitate natural airflow throughout the buildings. This design promotes passive ventilation and reduces the need for mechanical ventilation systems.

Function:

• • Facilitating Airflow: Strategic placement of windows, vents, and open spaces allows for effective natural ventilation. This design encourages the movement of fresh air through the building, helping to regulate indoor air quality and temperature.

Reduced Mechanical Ventilation:

• • Lower Energy Consumption: By promoting natural ventilation, Bosco Verticale reduces its reliance on mechanical ventilation systems. This reduction in mechanical ventilation lowers the building’s overall energy consumption, contributing to its sustainability.
  • Enhanced Indoor Air Quality: Natural ventilation helps to improve indoor air quality by allowing fresh air to circulate and removing stale air. This creates a healthier living environment for the occupants and further supports the building’s energy efficiency goals.

These design strategies collectively contribute to Bosco Verticale’s reputation as an innovative and energy-efficient residential project, setting a high standard for sustainable urban architecture.

---

c. Outcomes

1. Performance

Energy Efficiency:

• • Reduction in Heating and Cooling Loads: The innovative green façades and high-performance glazing of Bosco Verticale have resulted in substantial reductions in heating and cooling loads. The vertical gardens provide natural insulation by shading the building and moderating temperature fluctuations, while the low-emissivity glazing minimizes heat transfer through the windows. Together, these features contribute to a significant decrease in energy required for temperature control.
  • Improved Thermal Comfort: The combination of natural insulation from the greenery and the effective thermal performance of the glazing ensures a stable and comfortable indoor environment, further enhancing the building’s overall energy efficiency.

Indoor Air Quality:

• • Enhanced Ventilation: The design of Bosco Verticale promotes natural ventilation, which facilitates the circulation of fresh air throughout the buildings. This approach helps to reduce reliance on mechanical ventilation systems and improves indoor air quality.
  • Healthier Living Environment: The integration of plant life not only contributes to better air quality but also creates a more pleasant and healthier living environment for residents. The presence of greenery helps to filter pollutants and increase oxygen levels, supporting overall occupant well-being.

2. Impact

Urban Biodiversity:

• • Habitat Creation: Bosco Verticale has significantly contributed to urban biodiversity by incorporating vertical gardens that serve as habitats for various species. The extensive vegetation supports bird and insect life, fostering a more diverse and resilient urban ecosystem.
  • Ecological Integration: The project demonstrates how architectural innovation can be used to enhance urban biodiversity, providing a model for future developments seeking to integrate natural elements into city environments.

Environmental Quality:

• • Reduction of Heat Island Effect: The vertical gardens of Bosco Verticale help mitigate the heat island effect, a common issue in densely built urban areas. By providing shade and cooling through evapotranspiration, the greenery helps to lower surrounding temperatures and improve environmental quality.
  • Visual and Ecological Enhancement: The addition of lush, green façades enhances the visual appeal of the urban landscape while also contributing to ecological health. The project creates a striking contrast to conventional high-rise buildings and underscores the potential of green architecture to improve both aesthetics and environmental sustainability.

Bosco Verticale’s outcomes highlight its success in achieving energy efficiency, enhancing indoor air quality, and positively impacting urban biodiversity and environmental quality. The project serves as a compelling example of how innovative design can address contemporary urban challenges and set new standards for sustainable living.

---

d. Challenges

1. Maintenance

Green Façades:

Challenge: The extensive green façades of Bosco Verticale require ongoing maintenance to ensure the health and appearance of the vertical gardens. The large volume of vegetation demands regular care to manage plant growth, prevent disease, and maintain the aesthetic quality of the buildings.

Solutions:

• • Specialized Horticultural Services: To address these maintenance needs, the project employs specialized horticultural services. These professionals are trained to care for the diverse plant species, ensuring proper pruning, pest control, and overall plant health.
  • Irrigation Systems: The implementation of advanced irrigation systems helps to efficiently manage water distribution and support plant growth. Automated irrigation and rainwater harvesting systems are utilized to maintain the green façades with minimal manual intervention.

2. Design Complexity

Integration of Green Architecture:

Challenge: Integrating the vertical gardens with energy-efficient design elements presented significant design complexities. Balancing the aesthetic benefits of the greenery with the functional requirements for energy efficiency required innovative solutions and careful planning.

Solutions:

• • Advanced Engineering Techniques: The project team utilized advanced engineering techniques to address the structural and functional challenges associated with incorporating vertical gardens. This included designing systems to support the weight of the plants and integrating them with the building’s energy systems.
  • Collaborative Design Approaches: A collaborative approach was essential for solving the design challenges. The team worked closely with architects, engineers, and environmental specialists to develop solutions that harmonize green architecture with energy efficiency. This collaborative effort ensured that both the visual and performance goals of the project were achieved.

These challenges illustrate the complexities of implementing cutting-edge green architecture and energy-efficient design in a high-rise setting. The solutions developed for Bosco Verticale provide valuable insights and strategies for future projects aiming to integrate nature and sustainability into urban design.

---

Reflection Element:

Reflect on how the green façades of Bosco Verticale contribute to the building’s energy efficiency and overall sustainability.

---

---

4. Case Study 3: One Central Park, Sydney

One Central Park, located in Sydney, Australia, is a landmark project that exemplifies the fusion of innovative architecture with sustainable design principles. Completed in 2014, this striking development consists of two residential towers and has garnered international acclaim for its groundbreaking approach to integrating green spaces within a high-density urban environment. Designed by architect architect Norman Foster in collaboration with architect architect Lendlease, One Central Park is not just a residential complex but a beacon of how urban living can harmonize with nature.

The project is renowned for its iconic green walls, which cover the façades of both towers and create a visually stunning and ecologically beneficial feature. These vertical gardens are a hallmark of the development, designed to enhance environmental quality and improve the living experience for residents.

This case study explores how One Central Park has achieved remarkable sustainability and aesthetic success through its innovative design strategies. It provides an in-depth look at how the project integrates green architecture with energy-efficient technologies, and the outcomes and challenges associated with such an ambitious endeavor.

Key aspects covered in this case study include:

• Overview of the Building: A detailed examination of the purpose, design objectives, and distinctive features of One Central Park, highlighting its role as a model for integrating green spaces in urban settings.
• Energy-Efficient Design Strategies: An analysis of the specific technologies and design principles implemented to optimize energy use and enhance the building’s sustainability.
• Outcomes and Performance: An evaluation of the results achieved by these strategies, including improvements in energy efficiency, environmental impact, and resident well-being.
• Challenges and Lessons Learned: Insights into the obstacles encountered during the project’s development and the solutions applied to overcome them.

By studying One Central Park, learners will gain valuable insights into how innovative green architecture can transform urban landscapes and set new standards for sustainable high-rise living.

Project Overview:

a. Description:

• • Location: Sydney, Australia
  • Type: Mixed-Use Development
  • Completion: 2014
  • Architect: Norman Foster in collaboration with architect Lendlease
  • Purpose: One Central Park is designed to set a new standard for urban living by integrating sustainable design principles with high-density residential and commercial spaces. The development aims to enhance the urban environment while reducing its ecological impact through innovative energy-efficient strategies.

Key Features:

1. Innovative Design:

Distinctive Green Façades:

• • Overview: One Central Park is celebrated for its striking vertical gardens that cover the façades of its residential towers. These green walls feature extensive plant coverage, creating a visually impressive and unique architectural statement.
  • Sustainability Benefits: The vertical gardens serve multiple purposes beyond aesthetics. They provide natural insulation by acting as a thermal buffer, which helps to moderate indoor temperatures and reduce heating and cooling demands. Additionally, the greenery enhances air quality by absorbing pollutants and producing oxygen, contributing to a healthier urban environment.

2. Sustainability Focus:

Energy Efficiency:

• • Overview: The project is designed with a strong emphasis on reducing energy consumption and promoting sustainability. Key features include high-performance glazing, solar panels, and advanced HVAC systems, all of which work together to optimize energy use and minimize environmental impact.
  • Environmental Stewardship: One Central Park exemplifies a commitment to environmental stewardship through its integration of cutting-edge energy-efficient technologies and sustainable design practices. The building’s design not only meets but exceeds standard energy performance criteria, setting a high bar for future developments in urban sustainability.

---

b. Energy-Efficient Design Strategies:

1. High-Performance Glazing

One Central Park incorporates double-glazed windows throughout the residential and commercial spaces. These windows consist of two layers of glass with a space between them that is often filled with an inert gas, such as argon, which enhances thermal insulation.

Function:

• • Thermal Insulation: The double-glazed windows significantly improve the building’s thermal efficiency by minimizing heat transfer between the interior and exterior. This insulation helps maintain stable indoor temperatures, which reduces the demand on heating and cooling systems.
  • Energy Savings: By reducing the amount of heat lost in winter and heat gained in summer, the high-performance glazing lowers the building’s overall energy consumption. This leads to decreased reliance on mechanical climate control and contributes to the building’s energy efficiency goals.

2. Solar Panels

The rooftops and selected areas of One Central Park are equipped with photovoltaic (PV) panels that harness solar energy. These panels are strategically positioned to maximize their exposure to sunlight.

Function:

• • Renewable Energy Generation: The PV panels convert sunlight into electrical energy, which is used to power various building systems and reduce the dependency on conventional grid electricity. This renewable energy source contributes to the building’s energy needs and supports its sustainability objectives.
  • Carbon Footprint Reduction: By generating clean energy on-site, the solar panels help to lower the building’s carbon footprint and enhance its environmental performance. This sustainable energy approach aligns with the project’s goal of reducing its overall ecological impact.

3. Energy-Efficient HVAC

One Central Park features advanced HVAC (Heating, Ventilation, and Air Conditioning) systems that include energy recovery ventilators (ERVs) and high-efficiency equipment. These systems are designed to optimize energy use while maintaining indoor comfort.

Function:

• • Heat Recovery: The energy recovery ventilators capture heat from exhaust air and use it to pre-condition incoming fresh air. This process improves the overall efficiency of the HVAC system by reducing the energy required to heat or cool the incoming air.
  • Reduced Energy Consumption: The advanced HVAC systems are engineered to deliver efficient climate control, minimizing energy use compared to traditional systems. This contributes to lower operational costs and supports the building’s energy efficiency goals by reducing the overall energy demand.

Together, these energy-efficient design strategies contribute to One Central Park’s reputation as a model for sustainable mixed-use developments. By integrating high-performance glazing, solar panels, and advanced HVAC systems, the project demonstrates a comprehensive approach to reducing energy consumption and enhancing overall sustainability.

---

c. Outcomes:

1. Performance

Energy Efficiency:

• • Reduction in Energy Consumption: One Central Park has achieved significant reductions in energy consumption through its innovative design strategies. The integration of high-performance glazing, which minimizes heat transfer, alongside the use of solar panels for renewable energy generation and advanced HVAC systems with energy recovery ventilators, collectively contributes to lower energy use across the development.
  • Enhanced Building Performance: These energy-efficient features not only reduce operational costs but also improve the overall performance of the building. By optimizing thermal insulation, leveraging solar energy, and enhancing climate control, the project demonstrates a successful model for reducing energy demands in mixed-use developments.

Carbon Footprint:

• • Lower Environmental Impact: The emphasis on sustainability in One Central Park plays a crucial role in reducing its carbon footprint. By generating a portion of its energy through solar power and employing efficient systems for heating, cooling, and ventilation, the building minimizes its reliance on conventional energy sources and decreases greenhouse gas emissions.
  • Alignment with Environmental Goals: The project’s sustainable design aligns with broader environmental objectives, contributing to the reduction of urban carbon emissions and supporting global efforts towards greener living practices.

2. Recognition

Sustainability Ratings:

• • Green Star Rating: One Central Park has received high ratings for its sustainability and energy efficiency, including a prestigious Green Star rating from the Green Building Council of Australia. This recognition reflects the project’s success in implementing effective energy-efficient strategies and achieving its environmental goals.
  • Impact on the Environment: The accolades received highlight the development’s impact on promoting sustainable practices within the real estate industry. The project sets a benchmark for future developments by demonstrating how innovative design and technology can lead to enhanced sustainability and reduced environmental impact.

The outcomes of One Central Park underscore the effectiveness of integrating advanced energy-efficient design strategies in achieving substantial improvements in energy performance and sustainability. The project’s recognition and performance outcomes serve as a testament to its role as a leader in sustainable urban development.

---

d. Challenges:

1. Cost Management:

Challenge: Balancing the costs associated with implementing advanced energy-efficient technologies with the project’s budget constraints proved to be a significant challenge. The integration of high-performance glazing, solar panels, and sophisticated HVAC systems required substantial upfront investment.

Solutions:

• • Strategic Financial Planning: The project team employed comprehensive financial planning to manage the expenditures effectively. This involved detailed cost-benefit analysis to evaluate the long-term savings and performance benefits of the energy-efficient features.
  • Justification of Investment: By demonstrating the potential for substantial operational savings and environmental benefits, the team was able to justify the initial costs. This approach ensured that the investment in energy-efficient technologies was aligned with both the project’s sustainability goals and its financial objectives.

2. System Integration:

Challenge: Ensuring seamless integration of various energy-efficient systems within the mixed-use development required meticulous coordination and planning. The complexity of combining different technologies across residential and commercial spaces presented a significant challenge.

Solutions:

• • Advanced Engineering Techniques: The team used advanced engineering techniques to address the integration challenges. This included designing systems that were compatible and could function effectively together, even within the diverse environments of residential and commercial areas.
  • Collaborative Approach: A collaborative approach was adopted, involving close coordination between architects, engineers, and other stakeholders. This facilitated the effective integration of the energy-efficient systems, ensuring that they met the specific needs of both residential and commercial components of the development.

These challenges and their solutions highlight the complexities involved in integrating energy-efficient design within a mixed-use development. The project’s success in addressing these issues underscores its role as a model for achieving sustainability in modern urban construction while managing cost and system integration effectively.

---

Reflection Element:

Reflect on the effectiveness of the energy-efficient design features at One Central Park and think about how they contribute to the building’s overall energy performance.

---

---

5. Lesson Reflection

In this section, we will delve into a comprehensive reflection on the case studies presented. Our focus will be on synthesizing the key takeaways and insights gained from examining the energy-efficient design strategies employed in The Edge, Bosco Verticale, and One Central Park. By analyzing these real-world examples, we will explore the commonalities and variations in their approaches to energy efficiency, assess their effectiveness, and understand the broader implications for sustainable construction.

Key Points:

a. Key Takeaways

1. Common Energy-Efficient Design Strategies:

Across the case studies of The Edge, Bosco Verticale, and One Central Park, several common energy-efficient design strategies emerge. These include high-performance glazing, advanced HVAC systems, and the integration of renewable energy sources such as solar panels. Each project also incorporates unique elements, such as vertical gardens at Bosco Verticale and intelligent building systems at The Edge, demonstrating a range of approaches to achieving energy efficiency.

2. Benefits Observed:

The case studies highlight various benefits of implementing these strategies. Improved energy performance leads to significant reductions in operational costs and carbon footprints. Enhanced indoor environmental quality, including better air quality and thermal comfort, contributes to increased occupant satisfaction and productivity. Additionally, the use of renewable energy sources helps reduce dependency on non-renewable power and aligns with broader sustainability goals.

3. Challenges Encountered:

Common challenges include managing the high upfront costs associated with advanced technologies and ensuring the seamless integration of diverse systems within complex projects. Maintenance of green features, such as vertical gardens, also poses ongoing challenges. Addressing these issues requires careful planning, financial analysis, and innovative solutions to ensure the long-term success of energy-efficient designs.

4. Effectiveness and Applicability:

The effectiveness of different approaches varies based on project goals, location, and design context. For example, while vertical gardens significantly enhance urban biodiversity, high-performance glazing is crucial for reducing heat transfer. Understanding the context-specific effectiveness of each strategy allows for their optimal application in future projects.

---

b. Application to Future Projects

1. Best Practices: From the case studies, several best practices can be distilled for application in future energy-efficient designs. These include:

• • Incorporating Advanced Technologies: Utilizing high-performance glazing and energy-efficient HVAC systems can substantially reduce energy consumption and operational costs.
  • Leveraging Renewable Energy: Integrating solar panels and other renewable energy sources can enhance sustainability and decrease reliance on grid electricity.
  • Balancing Aesthetics with Function: Innovative design solutions, such as green façades, can enhance both the environmental performance and visual appeal of buildings.

2. Lessons Learned: Key lessons from the case studies include:

• • Financial Planning: Careful financial planning and cost-benefit analysis are essential for justifying the investment in advanced technologies and managing budget constraints.
  • System Integration: Effective coordination and integration of various energy-efficient systems are critical to achieving desired performance outcomes.
  • Maintenance Considerations: Ongoing maintenance strategies should be developed to ensure the longevity and functionality of energy-efficient features, such as green façades.

3. Improving Future Projects:

Applying these insights can lead to improved energy performance in future projects. By adopting proven strategies and addressing identified challenges, future developments can achieve greater sustainability, enhance occupant comfort, and contribute positively to the environment.

---

Reflection Element:

Reflect on the insights gained from the case studies and brainstorm ideas for implementing similar energy-efficient design strategies in future projects.

---

As we conclude this lesson on Case Study Analysis in Sustainable Construction, we’ve explored in-depth how leading projects like The Edge, Bosco Verticale, and One Central Park are redefining energy-efficient design. By examining their innovative strategies, key outcomes, and the challenges they faced, we’ve gained valuable insights into the practical application of sustainable practices in real-world scenarios.

Understanding these case studies not only enhances your knowledge of energy-efficient design but also equips you with practical examples that can inform your approach to future projects. Remember, each project presents unique opportunities and challenges, and the lessons learned from these case studies can serve as a guide for implementing effective and sustainable solutions.

To solidify your understanding and prepare for the next step, I encourage you to review the key points and strategies discussed in this lesson. Make sure to reflect on how these insights can be applied to different contexts and projects.

Now, it’s time to test your knowledge and ensure you’ve grasped the essential concepts from Lesson 9. Get ready to tackle the quiz, which will cover all the topics discussed in this lesson. Your success in the quiz will not only reflect your grasp of the material but also prepare you for practical applications in sustainable construction.

Good luck, and I look forward to seeing your progress as you continue to build expertise in sustainable construction practices!
