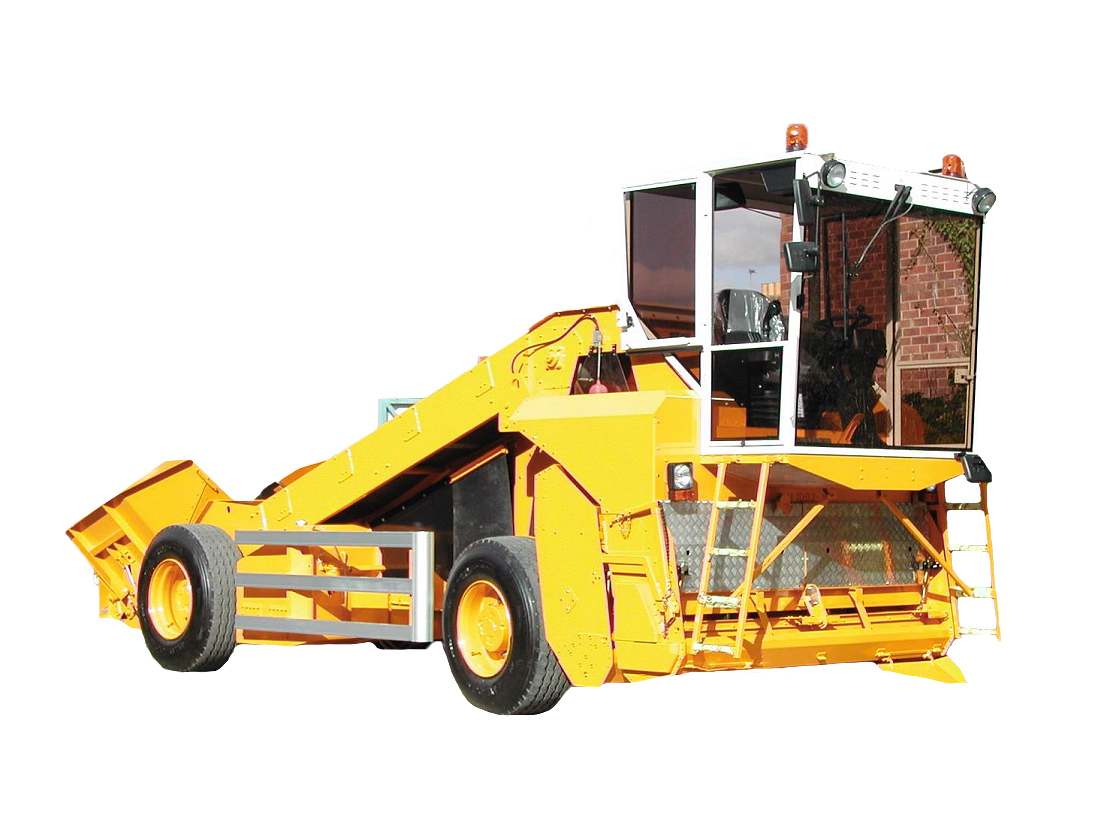

Minkoti Agencies is proud to offer the Chip Spreaders SPC Series by Phoenix, a state-of-the-art solution for your chipping and spreading needs. With a maximum spreading width of 4.90 meters and fully variable width capabilities, this machine is designed to deliver precision and efficiency while complying with current EU regulations (CE marked).
Key Features:
- Powerful Engine: The SPC Series is equipped with a JCB444TCAE, 4-cylinder, turbocharged, intercooled, common rail diesel engine, specifically designed for optimal performance in chipping applications. With a maximum power output of 120 kW and a torque of 650 Nm, this engine ensures reliable operation with fixed engine speed during use. The high-efficiency air filter system includes an element, safety element, pre-cleaner, and blockage indicator for enhanced performance.
- Hydrostatic Drive: The machine features a Sauer Danfoss hydrostatic pump and motor that transmits power from the engine to the gearbox, allowing for smooth infinite speed control via a joystick. This hydrostatic drive system enhances maneuverability and responsiveness on the job site.
- Robust Gearbox and Axles: The SPC Series is equipped with a single ZF two-speed (work/travel) gearbox, providing versatility for various applications. Both front and rear axles are JCB units with a static load capacity of 24 tonnes, driven by a heavy-duty drive unit. Each axle is fitted with a limited slip differential, ensuring constant 4-wheel drive under all conditions. The front axle features a center pivot design with hydraulic power steering for improved handling.
- Advanced Braking System: The machine is equipped with oil-immersed multi-disc brakes on both front and rear axles, operated by a 3-line hydraulic system that incorporates advanced hydraulic technology. A caliper disc brake on the rear axle provides fail-safe parking and emergency operation.
- Generous Fuel and Hydraulic Capacity: The SPC Series features a fuel tank with a capacity of 250 liters (55 gallons) and a hydraulic tank with the same capacity. The oil cooler is strategically placed in front of the main engine radiator for efficient cooling.

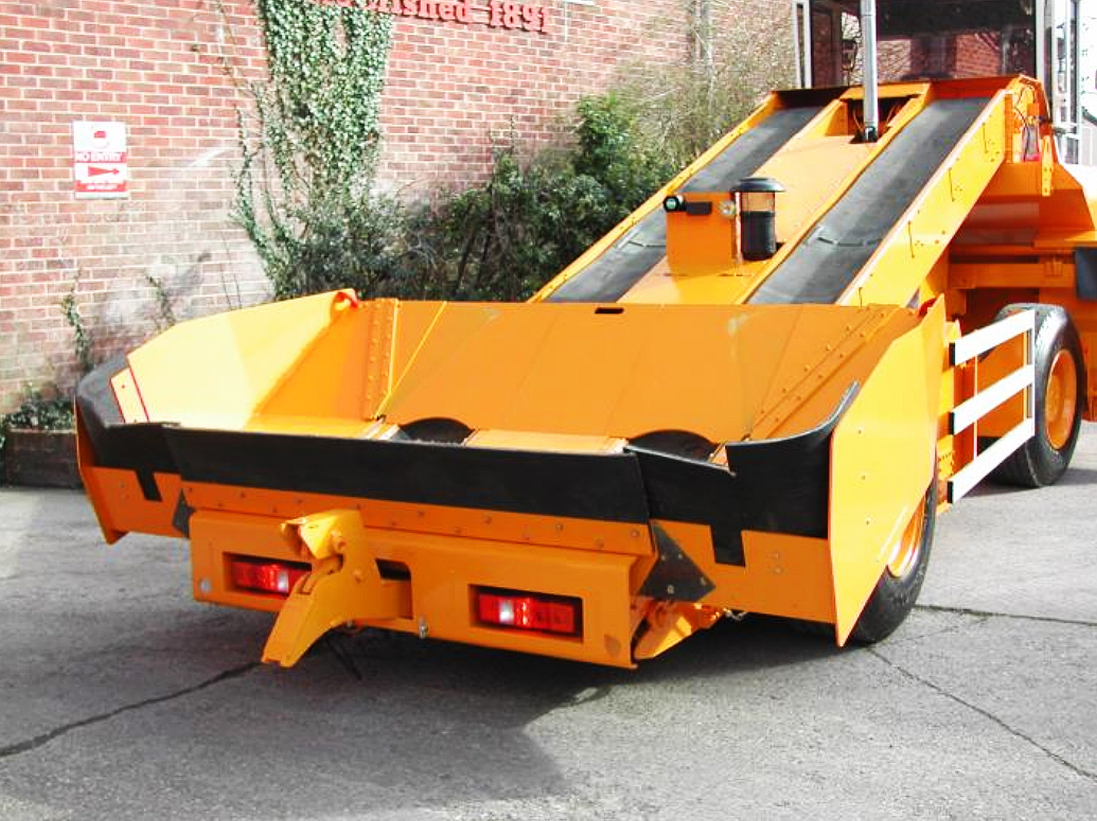

- Versatile Hopper and Conveyor System: The rear hopper has a capacity of 3m³ with hydraulically operated folding sides, while the front hopper also has a 3m³ capacity and a closed width of 2.5 meters. The front hopper is equipped with two extending hoppers, each 0.88 meters wide, allowing for a maximum spreading width of 4.1 meters. The twin 450mm wide troughing conveyor belts feature variable speed control, allowing for independent operation on both sides.
- Spreading Specifications: The SPC Series can handle chipping sizes ranging from 3-25 mm of crushed and screened aggregate, with an application rate of 2.0 – 20.0 kg/m², infinitely adjustable to meet your specific project requirements.
- Operator Comfort and Control: The operator position features a suspension seat with a joystick integrated into the armrest for primary spreading controls. The right-hand console includes additional operator controls, all housed within a controlled environment driver’s cab with locking barn-type doors and rearview mirrors for enhanced safety and visibility.
Your Benefits: Renting the Chip Spreaders SPC Series by Phoenix from Minkoti Agencies provides you with a reliable and efficient solution for your chipping and spreading projects, ensuring compliance with Kenyan standards for safety and performance. Experience the perfect combination of power, precision, and operator comfort with the SPC Series, and elevate your road construction capabilities today!
